Mold Manufacturing
Need an expert rapid prototyping service? We bridge design to production. Request an instant quote with free engineering analysis for precision parts within one day.
- Online instant pricing & Free DFM
- Instant quote within 24 hours
- Tight tolerance controllinto +/- 0.01mm
- Mold size range Up to 1200 mm in length
- Mold materials: Aluminum alloys (ADC12, A380), Zinc alloys (Zamak series)
- Mold lifespan: Customizable based on production requirements
- Mold types: Cold-chamber and hot-chamber molds
- Design & simulation: Moldflow software for gating, cooling, and venting optimization
- Production cycle time: 15–60 seconds per shot depending on complexity
Mold manufacturing is critical to the die-casting process, turning engineering specifications into robust physical tooling. Our molds are essential for casting molten aluminum into high-precision metal parts, ensuring dimensional accuracy and superior product consistency. High-quality tooling directly boosts production efficiency while optimizing cost management. We provide complete Die Casting Mold solutions, including specialized Custom Mold Manufacturing and reliable Mold Making Services. As an experienced Die Casting Mold Maker, we utilize cutting-edge Precision Mold Manufacturing techniques to deliver durable, high-quality results for diverse industrial needs.
What is Mold Manufacturing?
High-Precision Mold Manufacturing Capabilities
Sureton Die Casting leverages a comprehensive spectrum of mold technologies to produce both standard and complex die casting parts. Surpassing basic single-cavity molds, our expertise extends to advanced high-cavitation mold solutions engineered for superior precision, manufacturing efficiency, and consistent part quality.
Multi-Shot Molding with Rotary Plates
In-Mold Labeling (IML)
Unscrewing Mechanisms
Insert Molding
In-Mold Assembly
Vertical Rotating Stack (VRS) Molds
Stack Molds
In-Mold Closing
Cube Molds
Pre-Project Evaluation & Development Support
Backed by 25+ years of expertise, Sureton delivers expert mold design solutions. We offer in-depth project evaluation and engineering support at the start of mold manufacturing, guaranteeing that your tooling aligns with technical specs for maximum production efficiency.
Requirement Assessment
We initiate projects by reviewing specifications such as functionality, material selection, and production volume. By assessing mold feasibility early, we deliver optimal solutions and custom recommendations that align perfectly with your client requirements and precision goals.
Process Recommendations
We design advanced gating, cooling, and venting systems that significantly enhance mold longevity. Handling intricate parts, we utilize data-driven machining strategies to guarantee precision and consistent, high-quality die casting output for every project.
Design Feasibility Analysis
Leveraging Moldflow analysis, we identify potential casting defects like porosity and cold shuts, recommending proactive design improvements. We also analyze geometric complexities and wall thickness to ensure the part structure is perfectly suited for reliable die-casting manufacturing.
Material Selection Support
We specify high-grade mold steel to ensure exceptional durability and prolonged mold life under high heat. Key areas receive specialized treatments (coatings) to boost wear resistance and offer lasting corrosion protection.
Molding Manufacturing Network
Equipped with state-of-the-art technology—from CNC and Milling to Die Spotting machines—we specialize in precision mold making for 180T-800T capacities. Backed by 25 years of expertise, our process integrates detailed mold quotations and predictive mold flow analysis. We guarantee functionality through custom setup reports and comprehensive dimensional inspections, delivering die casting molds that exceed the highest industry standards.
We provide three distinct die casting mold categories to support every manufacturing stage:
Prototype Tooling
Engineered for short runs and design verification, these molds utilize modular frames for rapid construction. Depending on complexity, we deliver prototype tooling in just 2–6 weeks, allowing for quick part testing and acquisition.
Pilot / Preproduction Molds
Serving as a bridge to mass production, these molds feature production-grade gating, cooling, and ejection systems. They enable continuous design optimization and process refinement, with select components reusable for final tooling.
Production Molds
The standard for high-volume manufacturing. Built via verified CNC machining processes, our production molds ensure full component interchangeability. We support scalable solutions, from single-cavity to high-cavitation designs.
Mold manufacturing process is meticulously designed to ensure that every project, from design to final product, is clear, efficient, and meets customer requirements.
Design
In this initial phase, we partner with clients to gather critical data on dimensions, materials, and production volume. Our engineers leverage advanced mold design software and simulation tools to forecast real-world performance. By mitigating risks early in the design process, we ensure a seamless transition to the subsequent mold manufacturing steps.
Manufacturing

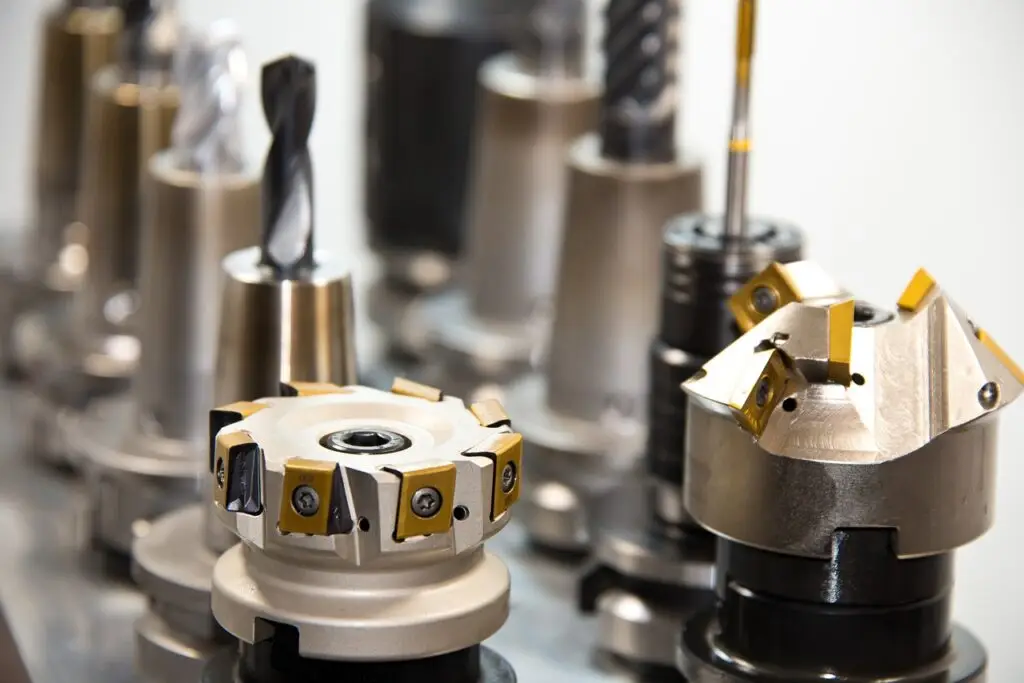

Equipped with comprehensive machinery—from CNC machining centers and EDM machines to precision grinders and 3D measuring instruments—we deliver superior tooling. Our mold development utilizes full 3D design and mold flow analysis within a standardized production framework. This ensures we maximize the reliability and efficiency of the entire mold manufacturing process.

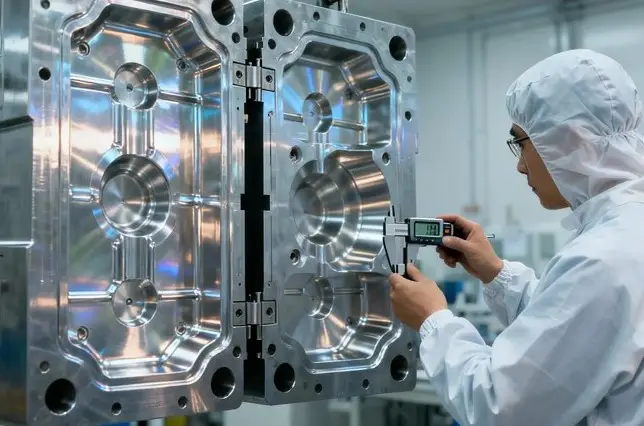

Trial Mold
Mold trials are essential for verifying production readiness. During this step, we execute initial runs and calibrate processing parameters for seamless output. Based on sampling results, we apply necessary design adjustments, ensuring the final product achieves peak quality and is fully optimized for mass production.
Final Product
In this initial phase, we partner with clients to gather critical data on dimensions, materials, and production volume. Our engineers leverage advanced mold design software and simulation tools to forecast real-world performance. By mitigating risks early in the design process, we ensure a seamless transition to the subsequent mold manufacturing steps.
Efficient. Effective. Exceptional
The Sureton Mold Manufacturing Process
Die Casting Materials
Aluminum Alloy
Aluminum die casting delivers lightweight, corrosion-resistant components with superior thermal conductivity. Highly recyclable and durable, these high-performance parts are the ideal choice for diverse industrial and automotive applications.
Aluminum ADC12, ADC6, A360, A380
Zinc Alloy
Zinc die casting offers superior flowability, enabling intricate designs with tight tolerances and thin walls. This material combines high precision and natural corrosion resistance with cost-effective production, making it ideal for complex, high-volume components.
Zinc Zamak 3, Zamak 5, Zamak 2, ZA8
One-stop Processes
Mold Manufacturing
High-accuracy aluminum and zinc alloy parts produced with state-of-the-art die casting machines ensuring precision and durability….
Die Casting
With machines from 88T to 800T, we produce high-accuracy aluminum and zinc alloy parts catering to diverse industrial needs…
CNC Machining
Over 50 CNC machines, including 3-axis, 4-axis, and 5-axis, deliver precise and efficient machining for complex geometries….
Surface Treatment
Specialized surface treatments enhance corrosion resistance and improve coating adhesion for long-lasting performance…
Chemical Pretreatment
Specialized surface treatments enhance corrosion resistance and improve coating adhesion…
Quality Inspection
Strict quality checks ensure compliance with ISO 9001 and IATF 16949 standards, utilizing advanced CMM measuring equipment…
Custom Solutions
Products
FAQ
Our mold design process includes requirement analysis, 3D modeling, DFM (Design for Manufacturability) analysis, CAE mold flow simulation, engineering review, and final design confirmation.
We specialize in aluminum and zinc alloy die-casting molds, designed for automotive, medical, telecommunications, and other precision industries.
We primarily use high-performance tool steels such as H13, SKD61, and 8407, selecting the best material based on customer requirements.
We use high-quality steel, advanced heat treatment processes, and optimized mold designs, ensuring a lifespan of 50,000 to over 500,000 shots.
Yes, we could provide DFM reports during the design phase to help customers optimize product designs, enhance manufacturability, and reduce production costs.
We utilize advanced CAE simulation tools such as Magma, Flow-3D, and AutoForm to optimize material flow, cooling efficiency, and minimize shrinkage issues.
The standard lead time is 4 to 6 weeks, depending on the complexity of the mold and specific customer requirements.
Yes, we design and manufacture single-cavity, dual-cavity, and multi-cavity molds to maximize production efficiency.
Our CNC machining accuracy reaches ±0.01mm, ensuring high precision for complex mold requirements.
Yes, we conduct T0, T1, and T2 mold trials before final delivery and provide sample parts for customer approval.
